drylin® R shaft guides

Components within the drylin® R shaft guides are identically dimensioned as recirculating ball bearings - in contrast, the drylin® R systems minimise noise emissions and reduce surface pressure by the larger contact area between guide and shaft. This allows the use of soft shaft materials such as aluminium or carbon fibre. All in all, the largest range of shafts is available in the programme of shaft linear guides with seven different materials. In combination with three different bearing types made of solid plastic, aluminium or stainless steel as well as five linear liners for different environments, drylin® R is suitable for maximum flexibility and all applications. The unique geometry of the bearing liners ensures a firm hold in the housing by means of a positive locking. This is contrary to glued or pressed solutions even under extreme conditions such as temperature, pressure, impacts and water. As required, a quick replacement of the individual linear liner is also possible.


Ürün sayısı: 104

drylin® R pillow block RJUM-05

  • Design: short, closed design
  • Material sliding element: iglidur® J
  • Housing material: aluminium
den 36,90 USD/Prç.
Sevkıyata hazır ürün sayısı, 9:
2 hafta 9
Ürün sayfasına git

drylin® R pillow block FJUMT-01

  • Design: closed design, tandem design, round flange
  • Material sliding element: iglidur® J
  • Housing material: anodised aluminium
den 43,92 USD/Prç.
Sevkıyata hazır ürün sayısı, 8:
24 saatte 3
2 hafta 5
Ürün sayfasına git

drylin® R liner JUM-01

  • Material: iglidur® J for all shaft surfaces in indoor and outdoor use
  • Version: enclosed housing, long design
den 4,26 USD/Prç.
Sevkıyata hazır ürün sayısı, 10:
24 saatte 9
2 hafta 1
Ürün sayfasına git

drylin® R pillow block OJUM-06

  • Design: long, open design
  • Material sliding element: iglidur® J
  • Housing material: anodised aluminium
den 56,08 USD/Prç.
Sevkıyata hazır ürün sayısı, 7:
2 hafta 7
Ürün sayfasına git

drylin® R aluminium shaft, solid/hollow shaft, AWMP

  • Lightweight
  • Ideal in combination with liners made from iglidur® J/J200
  • Low wear
  • Corrosion-free
  • Aluminium EN AW 6060/6061 (ALU)
Here you can CNC-machine the shaft in the 3D shaft designer.
den 31,31 USD/m
Sevkıyata hazır ürün sayısı, 13:
2 hafta 13
Ürün sayfasına git

drylin® R aluminium shaft, supported, AWMU, EN AW 6061/6060

  • Lightweight
  • Ideal in combination with liners made from iglidur® J/J200
  • Low wear
  • Corrosion-free
  • Aluminium EN AW 6060/6061 (ALU)
Here you can CNC-machine the shaft in the 3D shaft designer.
den 78,68 USD/m
Sevkıyata hazır ürün sayısı, 6:
2 hafta 6
Ürün sayfasına git

drylin® R liner JUM-02

  • Material: iglidur® J for all shaft surfaces in indoor and outdoor use
  • Version: Enclosed, short design
den 3,56 USD/Prç.
Sevkıyata hazır ürün sayısı, 9:
24 saatte 7
2 hafta 2
Ürün sayfasına git

drylin® R linear slide bearing RJ4JP-01

  • Alternative to ball bearings with Japanese dimension
  • Quick assembly
  • Secured by circlips
  • Plain bearing material: iglidur® J4
den 2,46 USD/Prç.
Sevkıyata hazır ürün sayısı, 7:
2 hafta 7
Ürün sayfasına git

drylin® R pillow block FJUM-01

  • Design: closed design, round flange
  • Material sliding element: iglidur® J
  • Housing material: anodised aluminium
den 29,39 USD/Prç.
Sevkıyata hazır ürün sayısı, 9:
24 saatte 7
2 hafta 2
Ürün sayfasına git

drylin® R liner J200UM-01

  • Material: iglidur® J200
  • Version: Enclosed housing, long design
den 5,11 USD/Prç.
Sevkıyata hazır ürün sayısı, 8:
2 hafta 8
Ürün sayfasına git

drylin® R stainless steel shaft, EEWM, 1.4034

  • High corrosion resistance
  • High chemical resistance
  • Ideal solution for wet applications
  • Stainless steel EEWM AISI 420C (X46)
Here you can CNC-machine the shaft in the 3D shaft designer.
istek üzerine
Sevkıyata hazır ürün sayısı, 10:
2 hafta 10
Ürün sayfasına git

drylin® R pillow block RJUM-06

  • Design: closed housing, long design
  • Material sliding element: iglidur® J
  • Housing material: anodised aluminium
den 50,19 USD/Prç.
Sevkıyata hazır ürün sayısı, 7:
2 hafta 7
Ürün sayfasına git

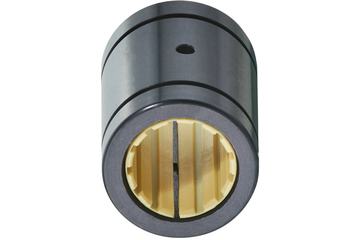

drylin® R linear slide bearing RJUM-01

  • Secured by circlips
  • Enclosed r anodised aluminium adapter
  • Material of the liner: iglidur® J
den 10,38 USD/Prç.
Sevkıyata hazır ürün sayısı, 12:
24 saatte 7
2 hafta 5
Ürün sayfasına git

drylin® R linear slide bearing OJUM-01

  • Open anodised aluminium adapter
  • For supported shafts
  • Material of the liner: iglidur® J
den 13,56 USD/Prç.
Sevkıyata hazır ürün sayısı, 8:
24 saatte 3
2 hafta 5
Ürün sayfasına git

drylin® R pillow block FJUM-02

  • Design: closed design, square flange
  • Material sliding element: iglidur® J
  • Housing material: anodised aluminium
den 29,39 USD/Prç.
Sevkıyata hazır ürün sayısı, 9:
24 saatte 2
2 hafta 7
Ürün sayfasına git
