- For flexing applications
- PVC outer jacket
- Not oil-resistant
- Silicone-free
- Flame retardant
- Overall shield
- Guarantee up to 4 years
igus-icon-lieferzeit-dotCF884.001
(3x(2x0,14)C+(4x0,14)+(2x0,5))C
Dil Değiştir :

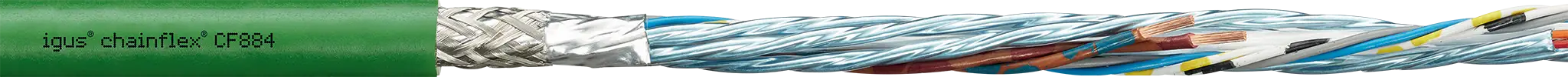

chainflex® measuring system cable CF884
Typical application areas
- For flexing applications
- Without influence of oil
- Preferably indoor applications
- Especially for unsupported travels up to 10m.
- Wood/stone processing, packaging industry, feeding, handling, adjusting devices
Garanti koşullarına göre ömür boyu garantili
Daha fazla bilgi: chainflex® Garantis
| Çift stroklar* | 1 milyon | 3 milyon | 5 milyon | |||
|---|---|---|---|---|---|---|
| Sıcaklık, | v maks [m/s] | a maks. | Hareket mesafesi | R dk. [faktör x d] | R dk. [faktör x d] | R dk. [faktör x d] |
| dan/e kadar [°C] | Desteksiz | [m/s2] | [m] | |||
| +5 / +15 | 17,5 | 18.5 | 19,5 | |||
| +15 / +60 | 3 | 20 | ≤ 10 | 15 | 16 | 17 |
| +60 / +70 | 17,5 | 18.5 | 19,5 |
Certificates and standards
