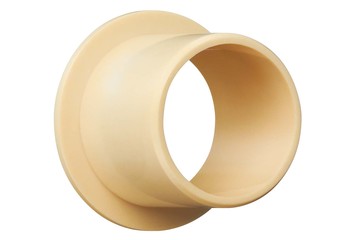

iglidur® P210, sleeve bearing, mm

  • Good wear resistance at roomtemperature
  • Good wear resistance at medium high temperatures
  • Extremely good coefficient of friction
  • Low humidity absorption
  • Very resistant to edge pressures
  • Very resistant to impacts/shock
  • Resistant to dirt and dust
  • Fogging behavior acc. to DIN 75201-B
Ürün tanımı
iglidur® P210 | Specialist for pivoting, rolling applications and more - Good coefficients of friction and wear on almost every shaft
iglidur® P210 plain bearings are the versatile all-rounder, which have proven to have above average service life, primarily in pivoting applications at medium loads of up to 20 MPa. This versatile material has already proven its worth in many customer-specific solutions and as a bar stock material. Clip-on or pretensioned design as well as vehicle interior applications are possible.

Typical application areas

Agriculture
Machine tools
Furniture/Industrial design
Textile industry

You can find further applications here:
Industry solutions

When to use it?
  • When you need a universal bearing for use in a moist environment
  • When you need a wear-resistant bearing for pivoting applications at medium loads
  • When edge loads and shocks occur
  • When the surface pressure of iglidur® J is insufficient
When not to use it?
Use our filter options to find the suitable product

Tolerances and measurement system
The installation dimensions and tolerances of iglidur® plain bearings are a function of the material and wall thicknesses. For each material, the moisture absorption and the thermal expansion are decisive factors. Plain bearings with low moisture absorption can be designed with a minimal bearing clearance. The rule for wall thickness: the thicker the wall of the bearings, the larger the clearances must be.
Testing methods

Assembly
iglidur® plain bearings are press-fit bearings. The inner diameter adjusts only after press-fitting in the correctly toleranced housing. The press-fit excess dimension can be up to 2% of the inner diameter. This ensures the secure press-fitting of the bearing. Axial or radial movement in the housing are prevented this way.
iglidur® - assembling, gluing, machining

Sertifikalar ve standartlar
RoHS compliant
According to 2011/65/EU (RoHS 2)
