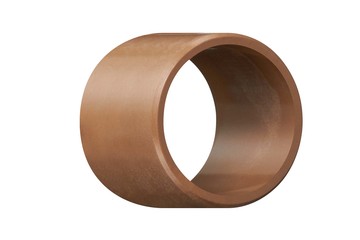

iglidur® H2, sleeve bearing, mm

  • Low-cost, for high temperatures
  • Can be used underwater
  • Resistant to chemicals
  • For high temperatures
Ürün tanımı
iglidur® H2 | Low-cost, for high temperatures

  • Can be used underwater
  • Cost-effective
  • Resistance to chemicals
  • For high temperatures
  • Lubrication-free and maintenance-free
In applications with iglidur® H2 plain bearings, economical aspects are in focus. For the first time, it is possible to offer a high-performance bearing for large volume applications with these technical advantages at such a low price: temperatures up to +200°C, permitted surface pressure up to 110N/mm2, and excellent chemical resistance. iglidur® H2 bearings are self-lubricating and suitable for all type of movement.

Typical application areas

Automotive


Further applications can be found here:
Industry solutions


When to use it?
  • For underwater use
  • If an economical bearing is required for use at high temperatures
  • For applications with fuels, oils, etc.
  • Resistance to chemicals
When not to use it?
Use our filter options to find the suitable product

Tolerances and measuring system
The installation height and tolerances of iglidur® plain bearings are dependent on the material and wall thickness. For each material, the moisture absorption and the thermal expansion are decisive factors. Plain bearings with low moisture absorption can be designed with a minimal bearing clearance. The rule of thumb for wall thickness: the thicker the wall of the bearings, the larger the clearances must be.
Testing methods

Assembly
iglidur® plain bearings are press-fit bearings. The inner diameter adjusts only after press-fitting into the correctly toleranced housing hole. The press-fit interference can be up to 2% of the inner diameter. This ensures that the bearing is securely press-fitted. Axial or radial movements in the housing are also prevented in this way.
iglidur® - assembling, gluing, machining

Sertifikalar ve standartlar
RoHS compliant
According to 2011/65/EU (RoHS 2)
