twisterband

...7000°* rotate...
twisterband module

Standard delivery includes the base plates, which are a component of the twisterband module!



twisterband: Compact, modular, economical

1. Base plate with strain relief
2. twisterband segment
3. Four sizes available
4. Some parts available with interior separation
5. Limited length compensation possible
6. Openable with film hinge or openable "easy" design
7. Base plate with strain relief

Rotations in a confined space - 20 times around its own axis With the very compact igus® twisterband, rotations can be achieved cost-effectively, with low wear and low maintenance, even in a confined space and therefore reliably guide energy, data and media.

Five sizes available

7,000°* and more horizontal rotary movement and up to 3,000° in the vertical installation position°

Rotary speeds up to 360°/s possible

Compact, modular and light

Bands can be shortened as required

Minimum installation spaces, fits tightly around the rotary axis

Can be used reliably in various installation positions (horizontal, vertical, upside down)

Cost-effective

Easy filling

Ideal in combination with igus® chainflex® cables for rotary movements in very limited installation spaces

Industries:
Cable reels, Machine tools, Robots (robot arms, 1/6 axis, scara robots), Leisure rides, medical equipment, radar and telescope equipment, aerospace, test, measurement, handling, lifting and installation equipment, wind turbines (e.g. blade adjustment); wherever rotary unions are used




Integrable hinge: Simple access and quick filling with cables and hoses (TB20.44.18, TB30)



Maximum angle of rotation as a rule of thumb: Hinge for each 180° = 360° more rotation



An axis is to be centrally installed for angles of rotation from 1500° rotating and horizontal


TwisterBand

Minimum installation space


TwisterBand

Compact, modular and cost effective- horizontal: 7,000° and more possible, vertical up to 3000° rotary movement in the smallest space


TwisterBand

Usable in various installation orientations: shown here: horizontal 7,000°* and more rotary motion in confined spaces. Limited length compensation possible


When to use twisterband:

Rotary movements up to 7,000° (depending on installation orientation, vertical: up to 3,000°, horizontal: 7,000° and more possible)

Possible for confined spaces

Rotary speeds up to 180°/s possible

Five sizes available

Some parts available with interior separation (depending on the series)

Very easy to fill, with openable integral hinges or "easy" design system (according to the series)

Limited length compensation possible

When should I take a different series?

For higher fill weights, twisterchain

For 3D movements triflex® R

RBR versions for even higher fill weights

If a lubrication-free and maintenance-free slewing ring bearing for continuous rotary movement is required
iglidur® slewing ring bearings

If you require shielded cables. Please get in contact with us.

twisterband radius


twisterband TB12.23.9 – opening system with ‘easy’ design
Part No.:
Rotation angle [°]:
TwisterBand
Part No. Inner width Internal height X1
Interior
installation space
X2
Exterior
installation space
R
min.
R
max.
d1 MAX.
  [mm] [mm] [mm] [mm] [mm] [mm]
 TB12.23.9.3.01.0 23 9 40 140 24 35 7 istek üzerine
 TB12.23.9.4.01.0 23 9 40 140 24 35 7 istek üzerine
 TB12.23.9.5.01.0 23 9 40 140 24 35 7 istek üzerine
 TB12.23.9.6.01.0 23 9 40 140 24 35 7 istek üzerine
 TB12.23.9.7.01.0 23 9 40 140 24 35 7 istek üzerine
 TB12.23.9.8.01.0 23 9 40 140 24 35 7 istek üzerine
 TB12.23.9.9.01.0 23 9 40 140 24 35 7 istek üzerine
 TB12.23.9.10.01.0 23 9 40 140 24 35 7 istek üzerine
 TB12.23.9.11.01.0 23 9 40 140 24 35 7 istek üzerine
 TB12.23.9.12.01.0 23 9 40 140 24 35 7 istek üzerine
 TB12.23.9.13.01.0 23 9 40 140 24 35 7 istek üzerine
 TB12.23.9.14.01.0 23 9 40 140 24 35 7 istek üzerine
 TB12.23.9.15.01.0 23 9 40 140 24 35 7 istek üzerine
 TB12.23.9.16.01.0 23 9 40 140 24 35 7 istek üzerine
 TB12.23.9.17.01.0 23 9 40 140 24 35 7 istek üzerine
 TB12.23.9.18.01.0 23 9 40 140 24 35 7 istek üzerine
 TB12.23.9.19.01.0 23 9 40 140 24 35 7 istek üzerine
 TB12.23.9.20.01.0 23 9 40 140 24 35 7 istek üzerine
 TB12.23.9.21.01.0 23 9 40 140 24 35 7 istek üzerine
 TB12.23.9.22.01.0 23 9 40 140 24 35 7 istek üzerine
Seçilen parça hakkında daha fazla bilgi:
3D CAD Numune talebi PDF Fiyat teklifi isteği İndirimli fiyatlar myCatalog
twisterband TB20.44.12 – opening system with ‘easy’ design
Part No.:
Rotation angle [°]:
TwisterBand
Part No. Inner width Internal height X1
Interior
installation space
X2
Exterior
installation space
R
min.
R
max.
d1 MAX.
  [mm] [mm] [mm] [mm] [mm] [mm]
 TB20.44.12.3.01.0 44 12 50 220 34 57 9 istek üzerine
 TB20.44.12.4.01.0 44 12 50 220 34 57 9 istek üzerine
 TB20.44.12.5.01.0 44 12 50 220 34 57 9 istek üzerine
 TB20.44.12.6.01.0 44 12 50 220 34 57 9 istek üzerine
 TB20.44.12.7.01.0 44 12 50 220 34 57 9 istek üzerine
 TB20.44.12.8.01.0 44 12 50 220 34 57 9 istek üzerine
 TB20.44.12.9.01.0 44 12 50 220 34 57 9 istek üzerine
 TB20.44.12.10.01.0 44 12 50 220 34 57 9 istek üzerine
 TB20.44.12.11.01.0 44 12 50 220 34 57 9 istek üzerine
 TB20.44.12.12.01.0 44 12 50 220 34 57 9 istek üzerine
 TB20.44.12.13.01.0 44 12 50 220 34 57 9 istek üzerine
 TB20.44.12.14.01.0 44 12 50 220 34 57 9 istek üzerine
 TB20.44.12.15.01.0 44 12 50 220 34 57 9 istek üzerine
 TB20.44.12.16.01.0 44 12 50 220 34 57 9 istek üzerine
 TB20.44.12.17.01.0 44 12 50 220 34 57 9 istek üzerine
 TB20.44.12.18.01.0 44 12 50 220 34 57 9 istek üzerine
 TB20.44.12.19.01.0 44 12 50 220 34 57 9 istek üzerine
 TB20.44.12.20.01.0 44 12 50 220 34 57 9 istek üzerine
 TB20.44.12.21.01.0 44 12 50 220 34 57 9 istek üzerine
 TB20.44.12.22.01.0 44 12 50 220 34 57 9 istek üzerine
 TB20.44.12.23.01.0 44 12 50 220 34 57 9 istek üzerine
Seçilen parça hakkında daha fazla bilgi:
3D CAD Numune talebi PDF Fiyat teklifi isteği İndirimli fiyatlar myCatalog
twisterband TB20.44.18 – opening system with lock
Part No.:
Rotation angle [°]:
TwisterBand
Part No. Inner width Internal height X1
Interior
installation space
X2
Exterior
installation space
R
min.
R
max.
d1 MAX.
  [mm] [mm] [mm] [mm] [mm] [mm]
 TB20.44.18.3.01.0 44 18 50 220 34 57 14 istek üzerine
 TB20.44.18.4.01.0 44 18 50 220 34 57 14 istek üzerine
 TB20.44.18.5.01.0 44 18 50 220 34 57 14 istek üzerine
 TB20.44.18.6.01.0 44 18 50 220 34 57 14 istek üzerine
 TB20.44.18.7.01.0 44 18 50 220 34 57 14 istek üzerine
 TB20.44.18.8.01.0 44 18 50 220 34 57 14 istek üzerine
 TB20.44.18.9.01.0 44 18 50 220 34 57 14 istek üzerine
 TB20.44.18.10.01.0 44 18 50 220 34 57 14 istek üzerine
 TB20.44.18.11.01.0 44 18 50 220 34 57 14 istek üzerine
 TB20.44.18.12.01.0 44 18 50 220 34 57 14 istek üzerine
 TB20.44.18.13.01.0 44 18 50 220 34 57 14 istek üzerine
 TB20.44.18.14.01.0 44 18 50 220 34 57 14 istek üzerine
 TB20.44.18.15.01.0 44 18 50 220 34 57 14 istek üzerine
 TB20.44.18.16.01.0 44 18 50 220 34 57 14 istek üzerine
 TB20.44.18.17.01.0 44 18 50 220 34 57 14 istek üzerine
 TB20.44.18.18.01.0 44 18 50 220 34 57 14 istek üzerine
 TB20.44.18.19.01.0 44 18 50 220 34 57 14 istek üzerine
 TB20.44.18.20.01.0 44 18 50 220 34 57 14 istek üzerine
 TB20.44.18.21.01.0 44 18 50 220 34 57 14 istek üzerine
 TB20.44.18.22.01.0 44 18 50 220 34 57 14 istek üzerine
 TB20.44.18.23.01.0 44 18 50 220 34 57 14 istek üzerine
Seçilen parça hakkında daha fazla bilgi:
3D CAD Numune talebi PDF Fiyat teklifi isteği İndirimli fiyatlar myCatalog
twisterband TB29.27.22 – opening system with lock
Part No.:
Rotation angle [°]:
TwisterBand
Part No. Inner width Internal height X1
Interior
installation space
X2
Exterior
installation space
R
min.
R
max.
d1 MAX.
  [mm] [mm] [mm] [mm] [mm] [mm]
 TB29.27.22.3.01.0 27 22 200 320 69 82 17 istek üzerine
 TB29.27.22.4.01.0 27 22 200 320 69 82 17 istek üzerine
 TB29.27.22.5.01.0 27 22 200 320 69 82 17 istek üzerine
 TB29.27.22.6.01.0 27 22 200 320 69 82 17 istek üzerine
Seçilen parça hakkında daha fazla bilgi:
3D CAD Numune talebi PDF Fiyat teklifi isteği İndirimli fiyatlar myCatalog
twisterband TB30.75.22 – opening system with lock
Part No.:
Rotation angle [°]:
TwisterBand
Part No. Inner width Internal height X1
Interior
installation space
X2
Exterior
installation space
R
min.
R
max.
d1 MAX.
  [mm] [mm] [mm] [mm] [mm] [mm]
 TB30.75.22.7.01.0 75 22 90 330 44 77 17 istek üzerine
 TB30.75.22.8.01.0 75 22 90 330 44 77 17 istek üzerine
 TB30.75.22.9.01.0 75 22 90 330 44 77 17 istek üzerine
 TB30.75.22.10.01.0 75 22 90 330 44 77 17 istek üzerine
 TB30.75.22.11.01.0 75 22 90 330 44 77 17 istek üzerine
 TB30.75.22.12.01.0 75 22 90 330 44 77 17 istek üzerine
 TB30.75.22.13.01.0 75 22 90 330 44 77 17 istek üzerine
 TB30.75.22.14.01.0 75 22 90 330 44 77 17 istek üzerine
 TB30.75.22.15.01.0 75 22 90 330 44 77 17 istek üzerine
 TB30.75.22.16.01.0 75 22 90 330 44 77 17 istek üzerine
 TB30.75.22.17.01.0 75 22 90 330 44 77 17 istek üzerine
 TB30.75.22.18.01.0 75 22 90 330 44 77 17 istek üzerine
 TB30.75.22.19.01.0 75 22 90 330 44 77 17 istek üzerine
 TB30.75.22.20.01.0 75 22 90 330 44 77 17 istek üzerine
 TB30.75.22.21.01.0 75 22 90 330 44 77 17 istek üzerine
 TB30.75.22.22.01.0 75 22 90 330 44 77 17 istek üzerine
 TB30.75.22.23.01.0 75 22 90 330 44 77 17 istek üzerine
 TB30.75.22.24.01.0 75 22 90 330 44 77 17 istek üzerine
 TB30.75.22.25.01.0 75 22 90 330 44 77 17 istek üzerine
Seçilen parça hakkında daha fazla bilgi:
3D CAD Numune talebi PDF Fiyat teklifi isteği İndirimli fiyatlar myCatalog
twisterband

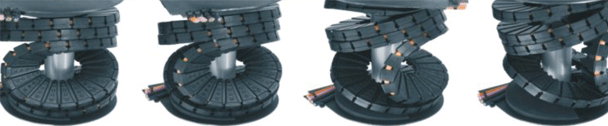

Example of a twisterband



*horizontal installation type
