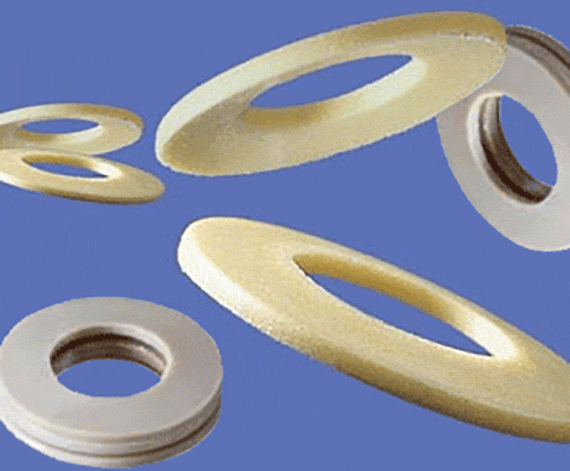

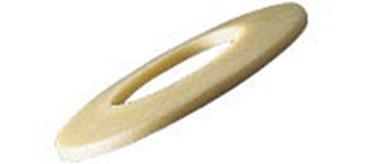

When should I use Polysorb disc springs?
When an application requires special disc spring characteristic curves which are flat and possible in metal only at a considerable expense (slotted designs)
For compensation of axial clearances and manufacturing tolerances
For vibration damping
For noise damping
When a non-magnetic material is required
For electrical and thermal insulation

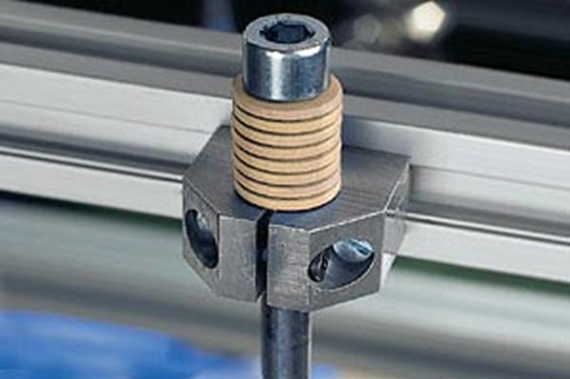

When not to use polysorb disk springs?

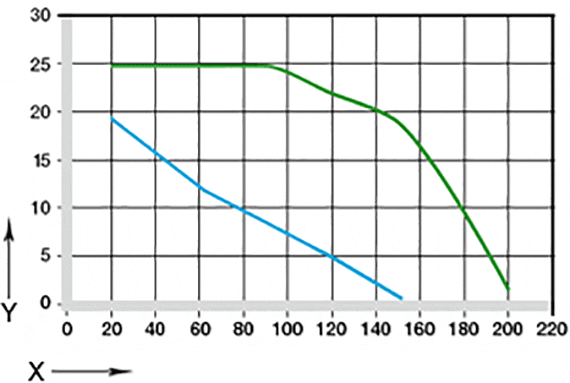

When constant spring forces are necessary over a wide temperature range
When high spring forces are required
Medium | Resistance | |
iglidur® J | iglidur® A500 | |
Alcohols | + | + |
Hydrocarbons | + | + |
Fats, oils without additives | + | + |
Fuels | + | + |
Diluted acids | 0 to - | + |
Strong acids | - | + |
Diluted bases | + | + |
Strong bases | + to 0 | + |
iglidur® | Standard environment | saturated in water |
J | 18 | 15 |
A500 | 24 | 23 |
De [mm]: |
|
Di [mm]: |
|
Part No.* | Standard values: Spring lengths and forces | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
De | D1 | t | h0 | F1,0 | M | |||||||||
[mm] | [mm] | [mm] | [mm] | [N] | [g] | |||||||||
JTEM-05 | 10 | 5,2 | 0,5 | 0,25 | 5 | 0,04 | 4,13 EUR | |||||||
JTEM-06 | 12,5 | 6,2 | 0,7 | 0,3 | 10 | 0,11 | 4,35 EUR | |||||||
JTEM-08 | 16 | 8,2 | 0,9 | 0,35 | 16 | 0,2 | 4,37 EUR | |||||||
JTEM-10 | 20 | 10,2 | 1,1 | 0,45 | 24 | 0,33 | 4,47 EUR | |||||||
JTEM-12 | 25 | 12,2 | 1,5 | 0,55 | 45 | 0,85 | 5,06 EUR | |||||||
JTEM-16 | 31,5 | 16,3 | 1,75 | 0,7 | 65 | 1,44 | 5,69 EUR | |||||||
JTEM-20 | 40 | 20,4 | 2,25 | 0,9 | 130 | 3,1 | 6,00 EUR | |||||||
A500TEM-05 | 10 | 5,2 | 0,5 | 0,25 | 8 | 0,04 | 6,81 EUR | |||||||
A500TEM-06 | 12,5 | 6,2 | 0,7 | 0,3 | 15 | 0,11 | 7,18 EUR | |||||||
A500TEM-08 | 16 | 8,2 | 0,9 | 0,35 | 24 | 0,2 | 8,38 EUR | |||||||
A500TEM-10 | 20 | 10,2 | 1,1 | 0,45 | 35 | 0,33 | 8,46 EUR | |||||||
A500TEM-12 | 25 | 12,2 | 1,5 | 0,55 | 70 | 0,85 | 10,94 EUR | |||||||
A500TEM-16 | 31,5 | 16,3 | 1,75 | 0,7 | 85 | 1,44 | 15,39 EUR | |||||||
A500TEM-20 | 40 | 20,4 | 2,25 | 0,9 | 150 | 3,1 | 21,17 EUR |
The standard values for the spring lengths and forces are rounded mean values.
* Material:
iglidur® J: JTEM, Standard
iglidur® A500: A500TEM, high temperature and/or chemical resistance

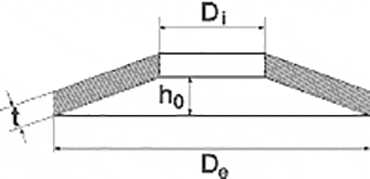

F | = Force |
S | = Spring travel |
De | = Outer diameter [mm] |
D1 | = Inner diameter [mm] |
t | = Thickness of the single disc [mm] |
h0 | = Maximum spring displacement [mm] |

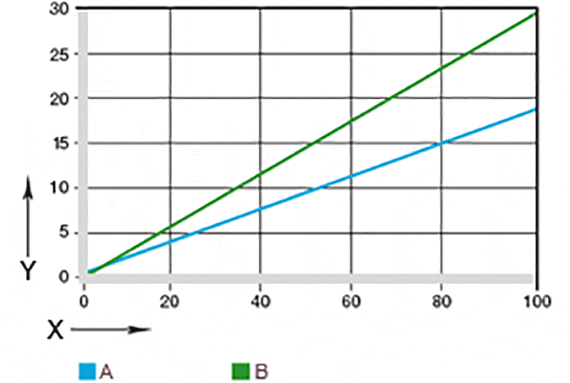

F1,0 | = Spring force with 100% displacement [N] |
M | = Weight of a single disc [g] |
