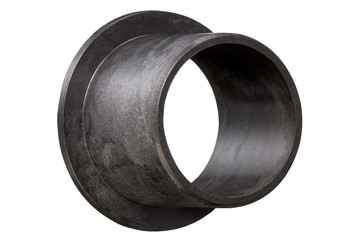

iglidur® UW500, sleeve bearing, mm

  • Good wear resistance at roomtemperature
  • Good wear resistance at medium high temperatures
  • Extremely good coefficient of friction
  • Very high media resistance
  • Resistant to edge pressures
  • Resistant to impacts/shock
  • Resistant to hot steam decontamination
Ürün tanımı
iglidur® UW500 | For hot liquids and fast, continuous movements
iglidur® UW500 was developed for underwater applications at temperatures up to +250 °C. In addition, the plain bearings will run in chemicals which would act as a lubricant.

Typical application areas

Automotive
Glass industry
Food industry
Machine tools
Heavy machinery / Plant construction


You can find further applications here:
Industry solutions

When to use it?
  • When bearings need to be used in liquids
  • For high speeds
  • For high temperatures
  • When high chemical resistance is required
When not to use it?
Use our filter options to find the suitable product

Tolerances and measurement system
The installation dimensions and tolerances of iglidur® plain bearings are a function of the material and wall thicknesses. For each material, the moisture absorption and the thermal expansion are decisive factors. Plain bearings with low moisture absorption can be designed with a minimal bearing clearance. The rule for wall thickness: the thicker the wall of the bearings, the larger the clearances must be.
Testing methods

Assembly
iglidur® plain bearings are press-fit bearings. The inner diameter adjusts only after press-fitting in the correctly toleranced housing. The press-fit excess dimension can be up to 2% of the inner diameter. This ensures the secure press-fitting of the bearing. Axial or radial movement in the housing are prevented this way.
iglidur® - assembling, gluing, machining

Sertifikalar ve standartlar
RoHS compliant
According to 2011/65/EU (RoHS 2)
