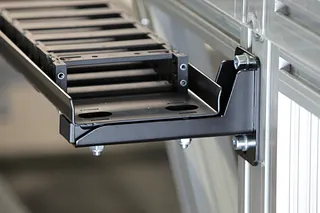

Steel support tray for supporting the energy chain's lower run

Simple one-piece steel support trays for the energy chain's lower run according to your requirements and specifications. Your width, height, and colour – we supply the right energy chain with support tray system, ready to install in your machine or application. Save time on procurement and design.

Complete system, ready to install
Avoids costly custom designs
Easy installation onto your machine, on profiles or wall brackets
Available in two types and four versions as a modular system
For many energy chain widths available from stock, with many mounting options

Two support tray types

Type 1

Series S9.010. | S9.011.
1. Steel support tray, Type 01, standard lengths (1m and 2m) from stock
2. Mounting profiles every 975mm
3. Wall bracket for easy fixing to your application
Outer guide trough width B_Ra: 89-185mm
Inner guide trough width B_Ri: 80-175mm
For the following series: E2.26 | E2.38 | 2400/2450/2480/2500 2600/2650/2680/2700 | E4.31L/R4.31L | E4.38L/R4.38L | E4Q.34/H4Q.34 | E4.21 | E4.28/R4.28 | E4.32/H4.32/R4.32 | EF61.29/E61.29 | E6.29/R6.29 | E61.35 | E6.35 | E61.40 | E6.40/R6.40

Type 2

Series S9.020. | S9.021.
1. Steel support tray type 02 Standard lengths from stock 1m and 2m
2. Mounting profiles every 975mm
3. Wall bracket for easy mounting in your application
Guide trough width outer B_Ra: 167 - 317mm
Guide trough width inner B_Ri: 156 - 306mm
For series: E2.48 | 3400/3450/3480/3500 | E4.48L/R4.48L | E4.64L | E4Q.44/H4Q.44 | E4Q.58/H4Q.58 | E4Q.82/H4Q.82 | E4.42/H4.42/R4.42 | E4.56/H4.56/R4.56 | E4.80/H4.80/R4.80 | 14040/14140/R18840 | 14240/14340 | 14550/14650/19050 | 15050/15150/R19850 | 15250/15350 | E61.52 | E6.52/R6.52 | E61.62 | E6.62 | E61.80 | E6.80

Product range:

Part No.	Width	Bra [mm]	Bri [mm]	Ha
S9.010.05.1000.0	.05 / .050	89	80	43	101,18 EUR
S9.010.05.2000.0	.05 / .050	89	80	43	139,93 EUR
S9.010.07.1000.0	.07 / .070	114	105	43	104,66 EUR
S9.010.07.2000.0	.07 / .070	114	105	43	145,13 EUR
S9.010.10.1000.0	.10 / .100	139	130	43	108,94 EUR
S9.010.10.2000.0	.10 / .100	139	130	43	161,93 EUR
S9.010.15.2000.0	.15 / .150	185	175	43	165,13 EUR
S9.010.15.1000.0	.15 / .150	185	175	43	115,85 EUR
S9.020.10.1000.0	.10 / .100	167	156	53	130,12 EUR
S9.020.10.2000.0	.10 / .100	167	156	53	179,70 EUR
S9.020.15.1000.0	.15 / .150	217	206	53	136,60 EUR
S9.020.15.2000.0	.15 / .150	217	206	53	197,93 EUR
S9.020.20.1000.0	.20 / .200	267	256	53	152,76 EUR
S9.020.20.2000.0	.20 / .200	267	256	53	223,70 EUR
S9.020.25.1000.0	.25 / .250	317	306	53	158,04 EUR
S9.020.25.2000.0	.25 / .250	317	306	53	242,20 EUR
S9.011.05.1000.0	.05 / .050	119,5	80	100	184,57 EUR
S9.011.07.1000.0	.07 / .070	144,5	105	100	189,49 EUR
S9.011.10.1000.0	.10 / .100	169,5	130	100	194,86 EUR
S9.011.15.1000.0	.15 / .150	214,5	175	100	206,18 EUR
S9.021.10.1000.0	.10 / .100	196,5	156	100	219,19 EUR
S9.021.15.1000.0	.15 / .150	246,5	206	100	227,32 EUR
S9.021.20.1000.0	.20 / .200	296,5	256	100	246,08 EUR
S9.021.25.1000.0	.25 / .250	346,5	306	100	253,34 EUR
S9.011.05.2000.0	.05 / .050	119,5	80	100	260,52 EUR
S9.011.07.2000.0	.07 / .070	144,5	105	100	267,88 EUR
S9.011.10.2000.0	.10 / .100	169,5	130	100	286,28 EUR
S9.011.15.2000.0	.15 / .150	214,5	175	100	296,12 EUR
S9.021.10.2000.0	.10 / .100	196,5	156	100	308,80 EUR
S9.021.15.2000.0	.15 / .150	246,5	206	100	329,46 EUR
S9.021.20.2000.0	.20 / .200	296,5	256	100	359,17 EUR
S9.021.25.2000.0	.25 / .250	346,5	306	100	380,65 EUR
