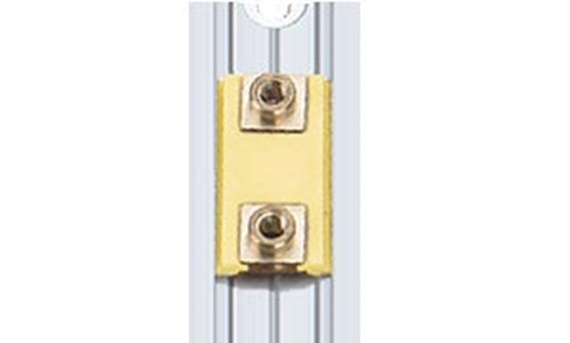

drylin® N - Low profile linear guide system NK-02-17

DryLin® N low profile guide system rail

Order no.	Max. rail lengths	a	C4	A3	C5=C6		h	h1	K1*	ly	lz	Weight of rail	Price / m
	[L max.]				Min.	max.				[mm²]	[mm²]	[g/m]
NS-01-17	2000	17	60	0	20	20/49,5	5,5	0,9	M3	1700	120	150	28,57 EUR
NS-01-17-AR	2000	17	60	0	20	20/49,5	5,5	0,9	M3	1700	120	150	35,39 EUR
NS-01-17-UNGEBOHRT	2000	17	60	0	20		5,5	0,9	M3	1700	120	150	27,55 EUR

Seçilen parça hakkında daha fazla bilgi:

3D CAD

Numune talebi

PDF

Fiyat teklifi isteği

myCatalog

For unbored rails please indicate "Unbored" in the remark.
* for cylinder screw with low head

Drylin® low profile linear guide system NK-02-17

Order no.	Designation	Weight of carriage
		[g]
NW-02-17	Carriage with threaded hole	1,7	4,40 EUR
NW-02-27	Carriage	12,5	6,12 EUR
NW-02-17-P	Carriage with pretension	1,7	4,40 EUR
NW-02-17-LLY	Carriage with threaded hole floating bearing y-direction	1,7	4,40 EUR
NW-02-17-LLZ	Carriage with threaded hole floating bearing z-direction	1,7	4,40 EUR
NW-02-17-LLYZ	Carriage with threaded hole floating bearing y und z-direction	1,7	4,40 EUR

Seçilen parça hakkında daha fazla bilgi:

3D CAD

Numune talebi

PDF

Fiyat teklifi isteği

myCatalog

Dimensions [mm] - guide carriages

Part No.	H	A	C	C2	K3	Spmin.	DpØmin.	Weight
	±0,35							[g/m]
NW-02-17	6	9,6	20	14	M3	2,5	5	1,7
NW-02-27	9,5	14	34	20	0	0	0	12,5
NW-02-17-P	6	9,6	20	14	M3	2,5	5	1,7
NW-02-17-LLY	6	9,6	20	14	M3	2,5	5	1,7
NW-02-17-LLZ	6	9,6	20	14	M3	2,5	5	1,7
NW-02-17-LLYZ	6	9,6	20	14	M3	2,5	5	1,7

Seçilen parça hakkında daha fazla bilgi:

3D CAD

Numune talebi

PDF

Fiyat teklifi isteği

myCatalog

Ordering of a complete system

Configuration in few steps:

1. Selection of the number of carriages
2. Selection of the type of carriagel
3. Entry of the rail length in mm
4. Selection of the carriage options
5.

Hint:

Detailed information can be found below in the drawings as well as in the below-mentioned pages. You can obtain precise specifications on the floating bearing options within the design rules.

1

no floating bearing

2

Floating bearing in z-direction

3

Floating bearing in y-direction

4

Floating bearing in yz-direction
