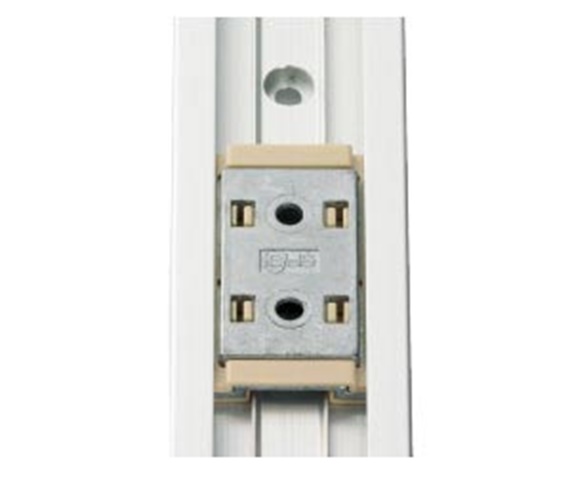

drylin® N - Low profile linear guide system NK-01-40

Version 01 with through hole:

Order no.	Max. rail lengths	a	C4	A3	C5=C6		h	h1	K1*	ly	lz	Weight of rail	Price / m
	[L max.]				Min.	max.				[mm²]	[mm²]	[g/m]
NS-01-40	3000	40	60	0	20	20/49,5	8,7	1,3	M4	26400	970	450	45,47 EUR
NS-01-40-UNGEBOHRT	3000	40	0	0	0		8,7	1,3		26400	970	450	43,83 EUR
NS-01-40-AR	3000	40	60	0	20	20/49,5	8,7	1,3	M4	26400	970	450	56,32 EUR

Seçilen parça hakkında daha fazla bilgi:

3D CAD

Numune talebi

PDF

Fiyat teklifi isteği

myCatalog

For unbored rails please indicate "Unbored" in the remark.
* for cylinder screw with low head

Version 01 with through hole:

Order no.	Designation	Weight of carriage
		[g]
NW-01-40	Carriage clipped on	30	10,05 EUR
NW-01-40-LLY	Carriage clipped on, floating bearing y-direction	30	10,05 EUR
NW-01-40-LLZ	Carriage clipped on, floating bearing z-direction	30	10,05 EUR
NW-01-40-LLYZ	Carriage clipped on, floating bearing y and z-direction	30	10,05 EUR

Seçilen parça hakkında daha fazla bilgi:

3D CAD

Numune talebi

PDF

Fiyat teklifi isteği

myCatalog

Version 01: Dimensions [mm] - guide carriages

Part. No.	H	A	C	C1	C2	A2	H2	Sp min.	Dp Ø min.	Weight
	±0,35									[g/m]
NW-01-40	9,5	23	50	40	20	0	1,3	0	0	30
NW-01-40-LLY	9,5	23	50	40	20	0	1,3	0	0	30
NW-01-40-LLZ	9,5	23	50	40	20	0	1,3	0	0	30
NW-01-40-LLYZ	9,5	23	50	40	20	0	1,3	0	0	30

Seçilen parça hakkında daha fazla bilgi:

3D CAD

Numune talebi

PDF

Fiyat teklifi isteği

myCatalog

Version 11 molded through hole

Order no.	Designation	Weight of carriage
		[g]
NW-11-40	Moulded carriage	30	10,05 EUR
NW-11-40-LLY	Moulded carriage, floating bearing y-direction	30	10,05 EUR
NW-11-40-LLZ	Moulded carriage, floating bearing z-direction	30	10,05 EUR
NW-11-40-LLYZ	Moulded carriage, floating bearing y und z-direction	30	10,05 EUR

Seçilen parça hakkında daha fazla bilgi:

3D CAD

Numune talebi

PDF

Fiyat teklifi isteği

myCatalog

Version 11: Dimensions [mm] - guide carriages

Part. No.	H	A	C	C1	C2	A2	H2	K4	Sp min.	Dp Ø min.	Weight
	±0,35										[g/m]
NW-11-40	9,5	23	20	40	50	0	1,3	0	0	0	30
NW-11-40-LLY	9,5	23	20	40	50	0	1,3	0	0	0	30
NW-11-40-LLZ	9,5	23	20	40	50	0	1,3	0	0	0	30
NW-11-40-LLYZ	9,5	23	20	40	50	0	1,3	0	0	0	30

Seçilen parça hakkında daha fazla bilgi:

3D CAD

Numune talebi

PDF

Fiyat teklifi isteği

myCatalog

Ordering of a complete system

Configuration in few steps:

1. Selection of the number of carriages
2. Selection of the type of carriage
3. Entry of the rail length in mm
4. Selection of the carriage options
5. Selection of the rails options.

Hint:

Detailed information can be found above in the drawings and tables, as well as in the below mentioned pages. You can obtain precise specifications on the floating bearing options within the design rules.

1

no floating bearing

2

Floating bearing in z-direction

3

Floating bearing in y-direction

4

Floating bearing in yz-direction
